Raspberry PI – Pinout

Posted on 15. September 201928. Oktober 2021 by Stefan Draeger

Der Raspberry PI verfügt in der ersten Version über 26 Pins und ab der 2. Generation über 40 Pins. In diesem Beitrag möchte ich kurz & knapp die Pinbelegung der einzelnen Modelle zum Raspberry PI zeigen.

Diese Seite habe ich angelegt um von den einzelnen Raspberry PI Tutorials auf das Pinout zu verlinken.

Raspberry PI Modell B+

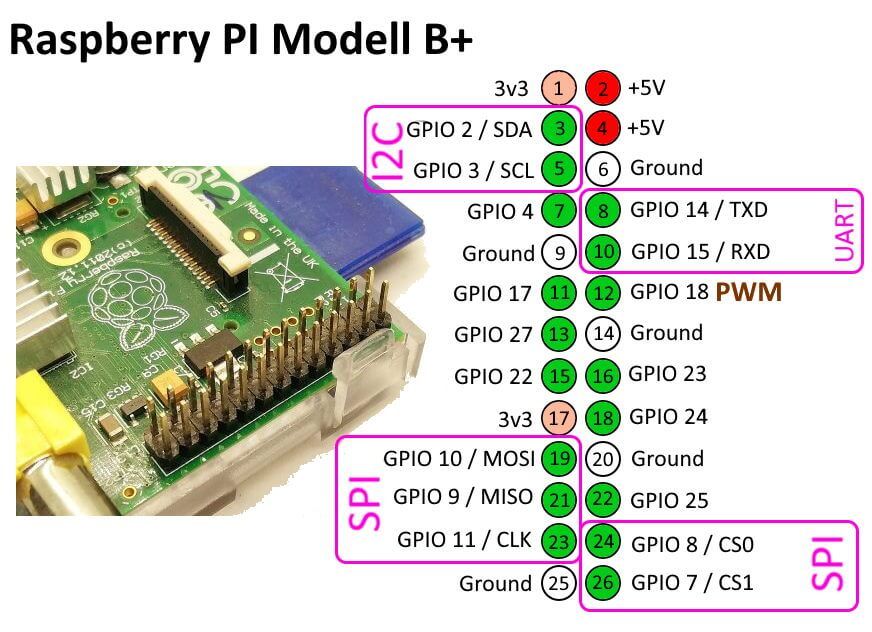

Pinbelegung - Raspberry PI Modell B+
Pinbelegung – Raspberry PI Modell B+
